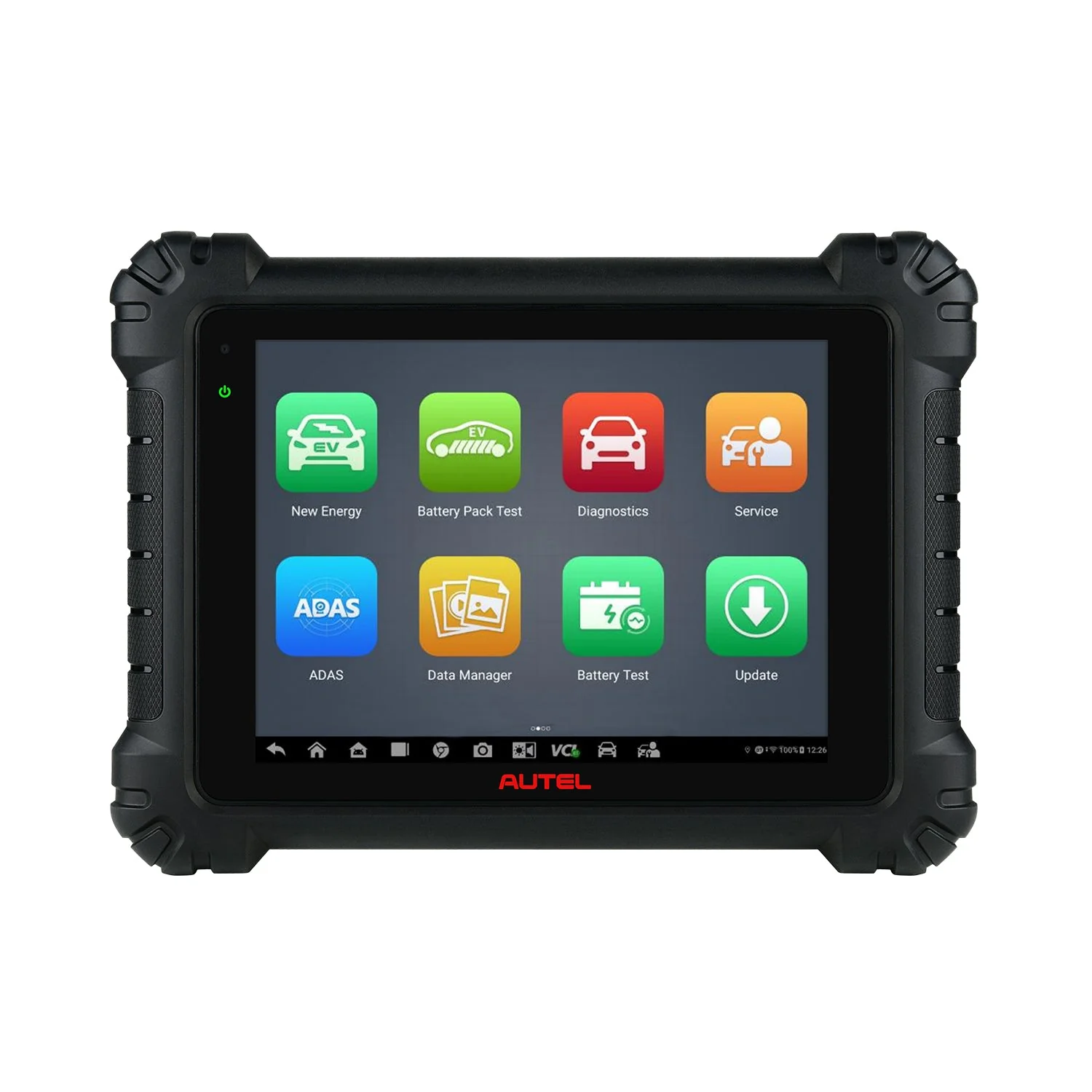

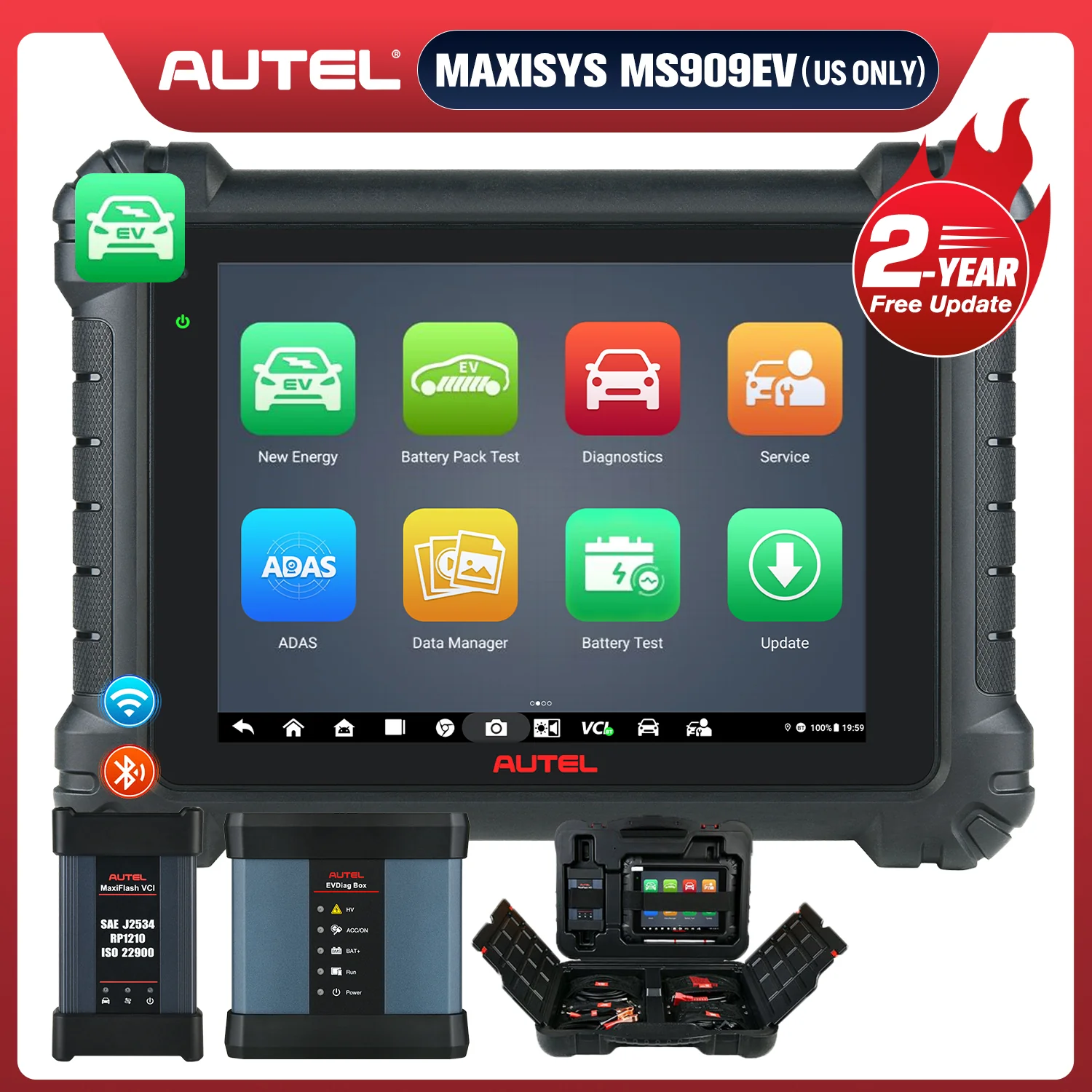

Autel MaxiSys MS909EV New Energy Car Diagnostics Scanner

The MaxiSys MS909EV is a new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.

Autel MS909EV Top 9 Highlights

• Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles

• Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data

• Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions

• State of Charge and State of Health analysis for true battery condition

• Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.

• Automatic system and software updates with real-time push message notifications via internet

• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

• One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized

• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Autel Maxisys MS909EV Feature

HV Systems Diagnostic

Autel MS909EV EV diagnostic scan tool is able to perform diagnosis on high-voltage (HV) systems of new energy vehicles, mechanic can get detailed information of the battery pack, including SOC/SOH, total voltage, total current, pack voltage delta, temperature, etc.

HV Systems Diagram

Autel MS909EV Scanner HV Systems Diagram

Offline Battery Pack Diagnostics

Autel Maxisys MS909EV for Offline Battery Pack Diagnostics

Autel MS909EV EV scanner also support offline battery pack diagnostics to make sure that the battery is repaired before installation, totally improve your working efficiency.

Intelligent Diagnostic As Autel MS Ultra / Ultra EV

Autel Maxisys MS909EV Diagnostics Intelligent Diagnostic As Autel MS Ultra / Ultra EV

Autel MaxiSys MS909EV supports OE Technical Service Bulletin, Repair Guidance, DTC Analysis, Relevant Cases, together with Topology Diagram, it's so easy to locate and root out the DTCs. You can tap via the Topology to check the fault codes and solve the multi-functions with detailed DTC definition and solution provided. Massive time and energy are saved with the real intelligent diagnostic tool MS909EV.

2024 Upgraded Topology 2.0

Intelligent Diagnostic Tools 2023 Autel MS909EV

Autel EV Scanner MS909EV can automatically scan all ECU modules and display the module communication structure and list all system faults in one diagram. Moreover, Autel MS909EV has been upgraded with Topology 2.0 to create a new whole topology diagram based on circuit diagram according to different vehicle configuration. Topology 2.0 can display different topology structure with one-to-one correspondence, helping technicians locate question fast and accurately.

ECU PROGRAMMING&ECU CODING

Autel car diagnostic scan tool MaxiSys MS909EV supports ECU programming on specific For BMW and Benz just like OE tools. You can use it to reprogram and re-match the new ECU modules after replacement, or use the ECU Coding to unlock hidden functions, set customerized functions, and improve vehicle performance. Autel MS909EV is designed to handle complex vehicle issues such as fuel efficiency, power loss, and durability of mechanical parts, etc.

Autel MS909EV ECU PROGRAMMING&ECU CODING

Autel Maxisys MS909EV Intelligent EV Diagnostics Scanner

40+ Maintenance Functions

40+ Maintenance Functions Of Autel MS909EV Scanner Tools

Autel MaxiSys MS909EV scanner can perform 40+ services like Oil Reset, Injector Coding, EPB, TPMS, BMS, ABS Bleeding, Suspension,Trans Adaptation, IMMO Keys, EPB Reset, SAS Calibration, Throttle, Suspension, cam crank relearn, power balance test and so on. For VAG vehicle, Autel intelligent diagnostic scan tool MS909EV presents full detailed step by step instructions, simplify all the complicated operations.

Autel MS909EV- Top High-end Diagnostic Tool

Full Bidirectional Control Ability

Autel MS909EV EV diagnostic scan tool can communicate with vehicle’s computer and send action commands to different vehicle’s modules for interactive tests.

Key Fob Programming

Autel MS909EV 2024 newest automotive diagnostic scan tool can disable the lost vehicle keys and program a new key fob on most of the low-grade anti-theft vehicles.

VAG Guided Functions

Targeted on different car models and configurations, Autel MS909EV displays detailed operation guidance including step by step tips, auto log-in, matching, setting and coding.

More Flagship Features

Autel MS909EV auto scan tool provides the top diagnostic experience on over 20000+ vehicles with best hardware configuration and most powerful functionality.

Autel Maxisys MS909EV Specifications

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
	BT V5.0 + BR/EDR
	GPS
	USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight
Camera	Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

[comparisons]

	MS909EV	Ultra EV	MS909	MS919	Ultra
Hardware
Connection	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCMI
Screen	9.7inch touchscreen	12.9inch touchscreen	9.7inch touchscreen	9.7inch touchscreen	12.9inch touchscreen
Battery	15,000mAh	18,000mAh	15,000mAh	15,000mAh	18,000mAh
Processor	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core
Memory	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM
Camera	16MP rear/16MP front	16MP rear/5MP front	16MP rear/16MP front	16MP rear/16MP front	16MP rear/5MP front
Docking Station	/	Included	/	/	Included
EVDiag Box	Included	Included	/	/	/
Software
Operating System	Android 10.0	Android 7.0	Android 10.0	Android 10.0	Android 7.0
Automatic Detection	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan
Secure Gateway Access	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account
License Plate Reader	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles
Vehicle Coverage	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S.,European and Asian electric, gas and diesel, and hybrid vehicles
OBDII Test Modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes
Service Resets	36 service features	36 service features	36 service features	36 service features	36 service features
Diesel PM	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles
System Diagnostics	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems
High-voltage System Diagnostics	Diagrams of high-voltage system block	Diagrams of high-voltage system block	/	/	/
Battery Pack Diagnostics	SOC and SOH analysis	SOC and SOH analysis	/	/	/
Component Activations	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control
Enhanced Functions	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding & adaptations
ADAS Calibration	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required
Cloud Services	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage
Repair Assist	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions
Topology Module Mapping	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles
Relevant Cases	DTC troubleshooting	DTC troubleshooting	DTC troubleshooting	DTC troubleshooting	DTC troubleshooting
Technical Service Bulletins	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles
Oscilloscope	/	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	/	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester
Split ScreenDisplay	/	/	/	/	View multiple functions at once

[accessories]

Autel Maxisys MS909EV Package List
