Autel MaxiScan MS309 | CAN OBD2 Scan Tool Auto Diagnostic Tool for Check Engine Light

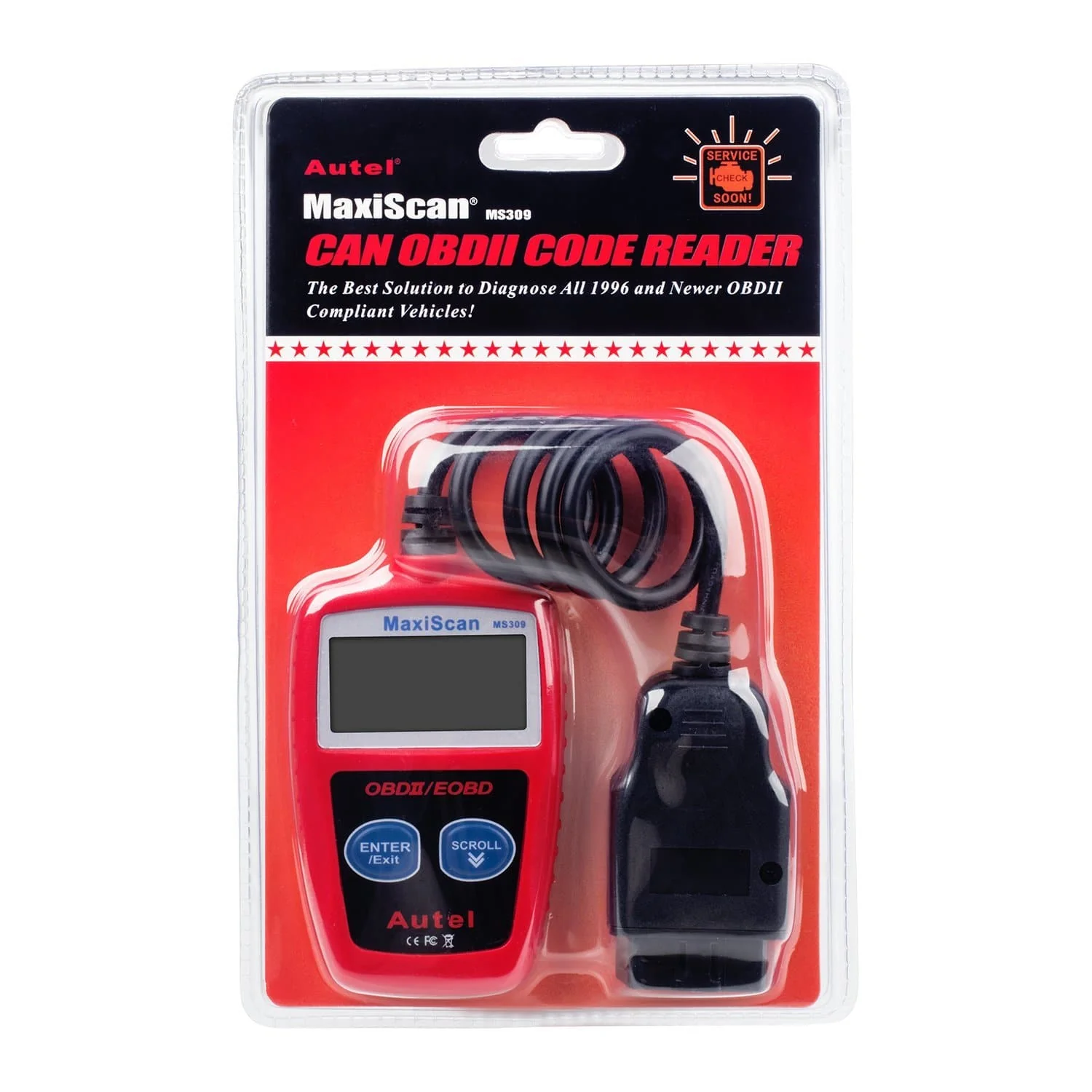

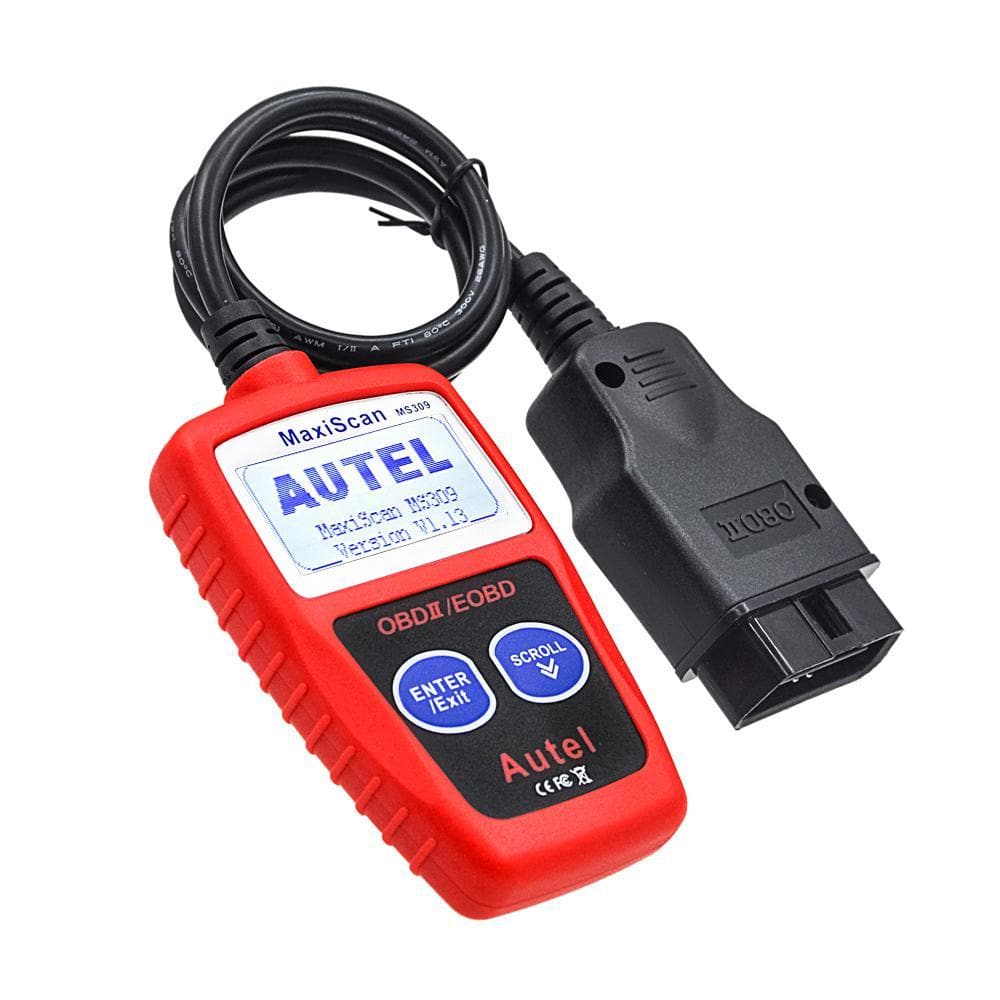

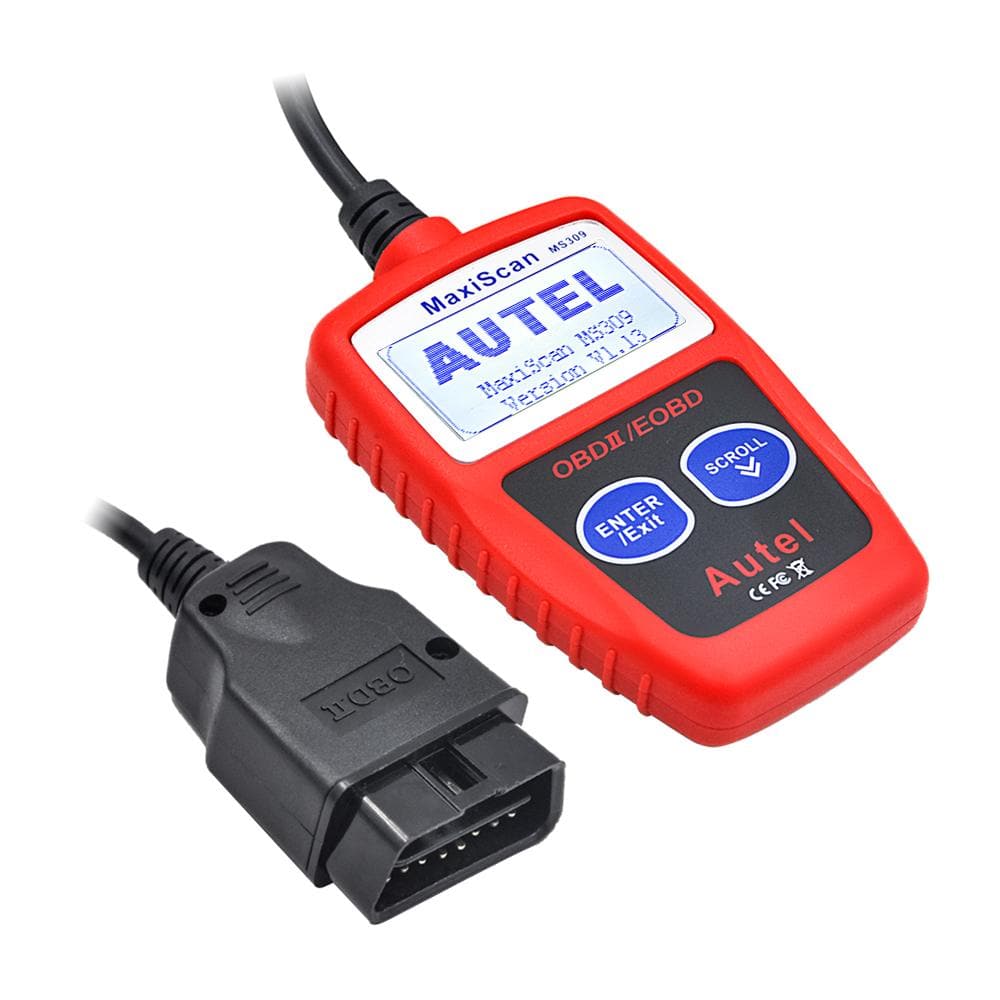

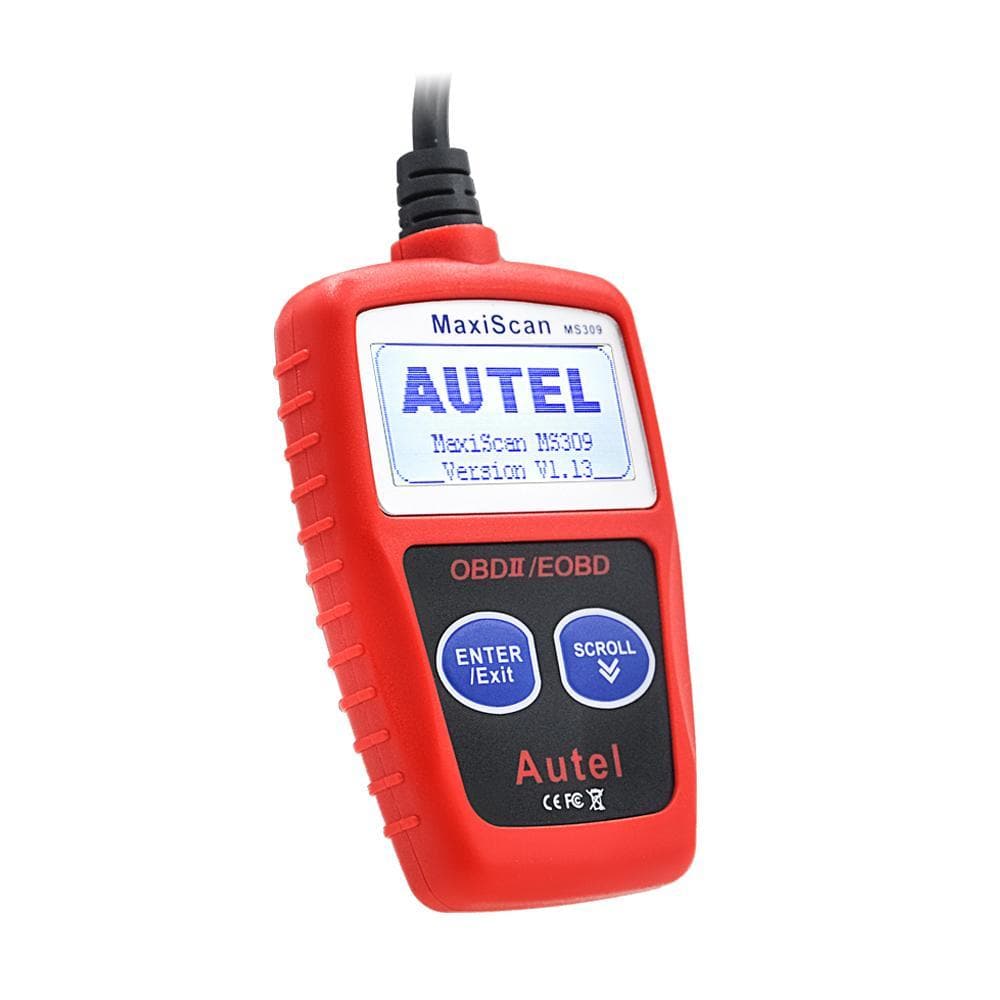

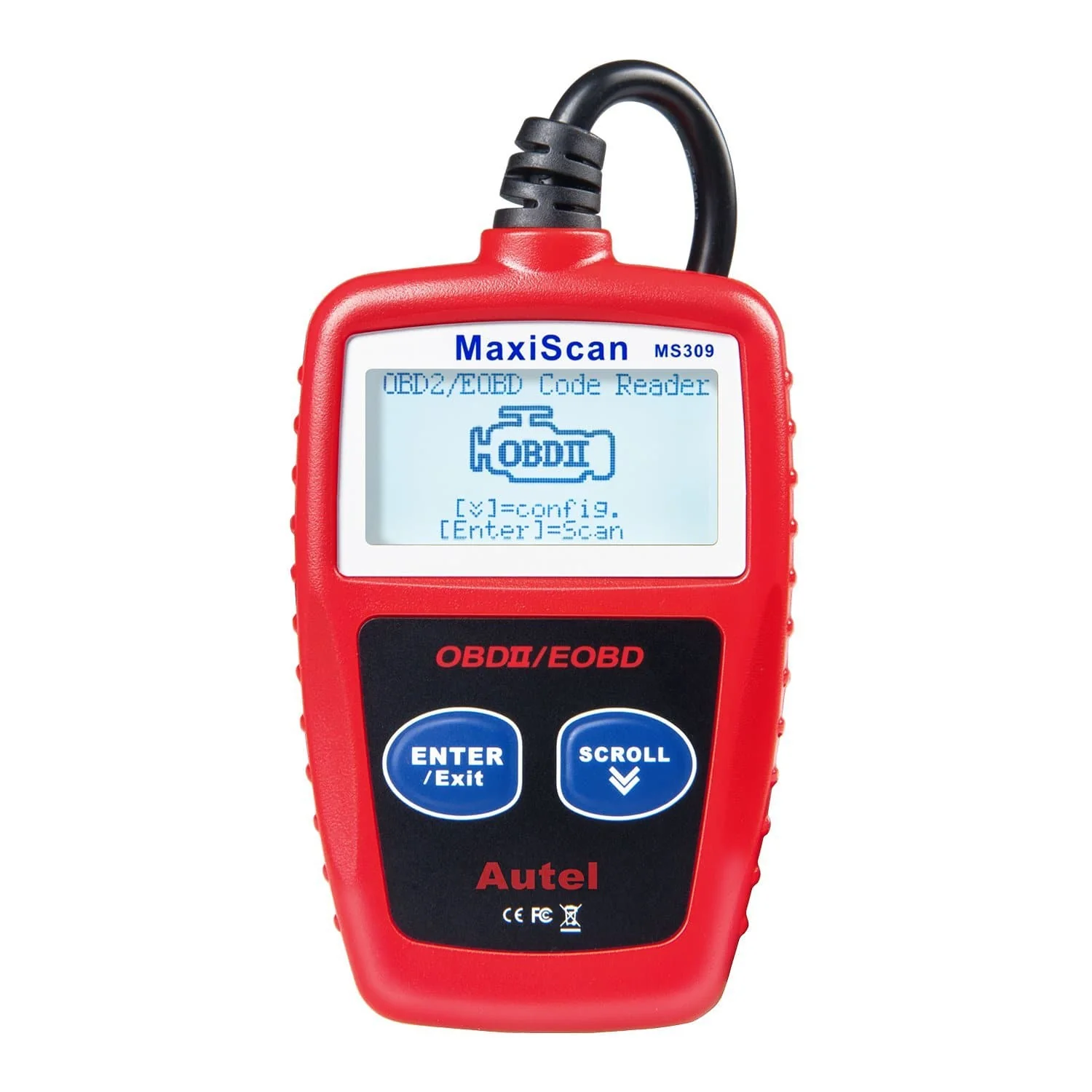

Autel MaxiScan MS309

• Autel ms309 quickly scan and define vehicle Diagnostic Trouble Codes (DTCs) with this easy-to-use, compact code reader with the ability to view Freeze Frame Data, check I/M Readiness (Emissions) and monitor status. The MS309 is a go-to tool for quick vehicle health status.

Autel Maxiscan MS309 Features:

• Compatible with domestic, Asian and European vehicles, 1996 and newer.
• Easily detects Check Engine Light (MIL) causes
• Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1), and pending codes
• Turns off Check Engine Light, clears codes and resets monitors
• Erases Codes and turns off Check Engine Lights
• Displays DTC definitions onscreen
• Views freeze frame data
• Displays monitor and I/M readiness status (emissions)
• Multilingual (including English, Spanish, French and German) menus and DTC definitions
• Retrieves vehicle identification information (VIN, CALID and CVN)
• Supports CAN (Controller Area Network) and all other current OBD II protocols

Autel MaxiScan MS309 Specification:

Display:	2.8-inch LCD (320 x 240 dpi)
Display:	Backlit, 128x64 pixel display
Operating Temp:	0 to 60 ℃ (32 to 140 ℉)
Storage Temp:	-20°C to 70°C (-4°F to 158°F)
Power:	8 to 18 V provided via the vehicle battery
Dimensions (LxWxH):	110.3 mm (4.34") x 69.5 mm (2.74") x 20.2 mm (0.80")
Weight:	NW: 180 g (0.39 lb.); GW: 210 g (0.46 lb.)

Autel MaxiScan MS309 Package List:

• 1x MS309 main unit

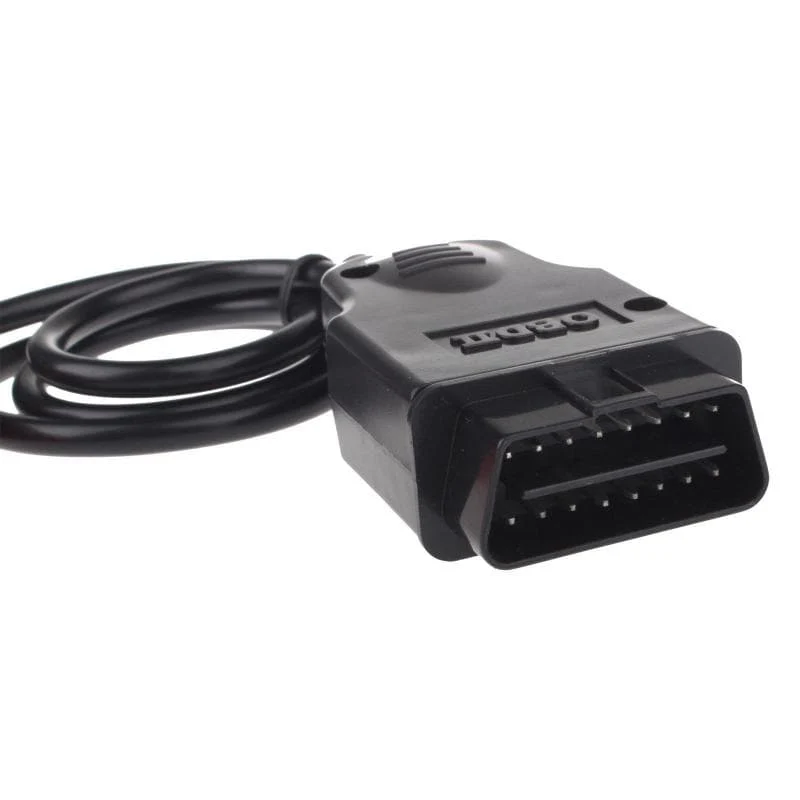

• 1x OBD II Cable
• 1x User Manual
